Exhaust Pipes

[G-BLMW]

Just getting Nipper ready for Permit and have discovered holes and bad corrosion (again!!) in my mild steel exhaust pipes. Can anyone recommend a good place to have stainless pipes manufactured or where I can buy thin walled stainless tube and elbows. I have flanges (laser cut no less!) just need someone to do the welding and bendy bits.

Thanks

Stuart

[Darren]

Hi,

try: http://www.jpexhausts.co.uk/

rgds,


Darren.

[G-BLMW]

Thanks Darren, had a look at the web site, looks like they know a thing or two.Will have to get a quote.

[Neil Spooner]

Hi Stuart,

JP exhausts look very good, and would be interested to hear how much they charge. A friend and local inspector who is also a CAA approved welder is local to me, he does a very good and economical job. His website is: www.richardkimberleyservices.co.uk

Neil

[G-BLMW]

Neil

Just received a budget quote from JP exhausts @ £75 per pipe with me suppling flanges . They only bend miniimum 1.5mm wall tube , I was hoping for 20swg (about 1mm) to save a little weight . Do you know what gauge most other people use?

Stuart

[G-BLMW]

Neil

Just been looking at the recommended website and photos of your rebuild, looks great, on your exhaust system are the front and rear pots (per side) connected by a slip joint with one common outlet per side, I can't quite make it out from the photos.

Stuart

[Neil Spooner]

Hi Stuart,

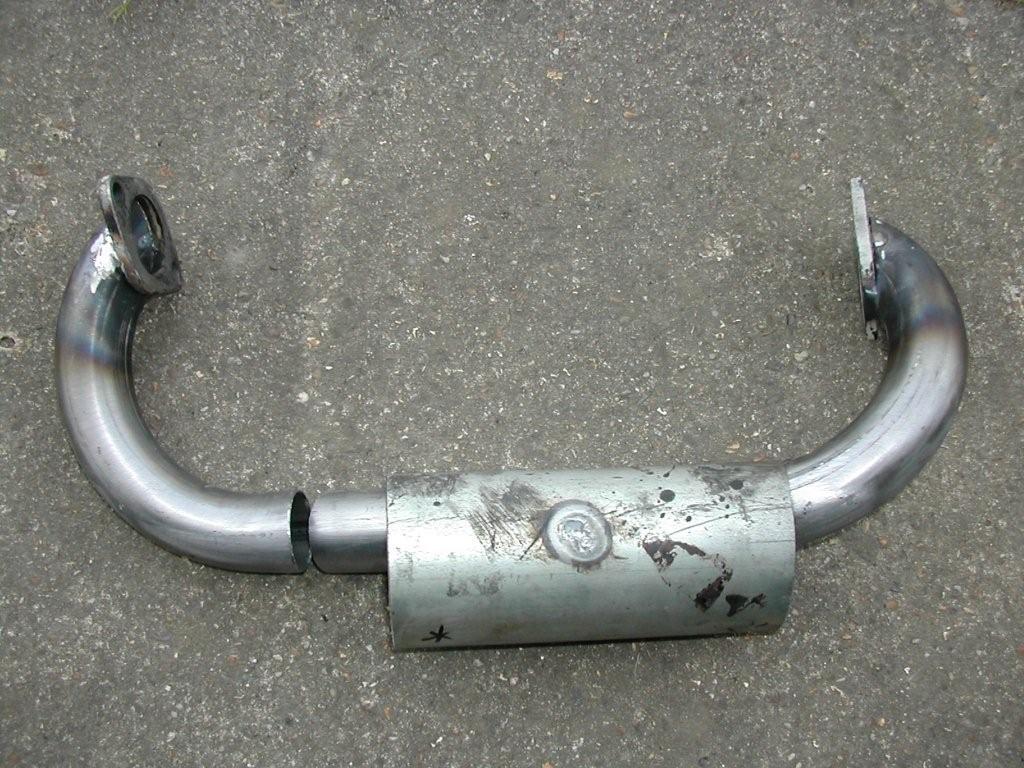

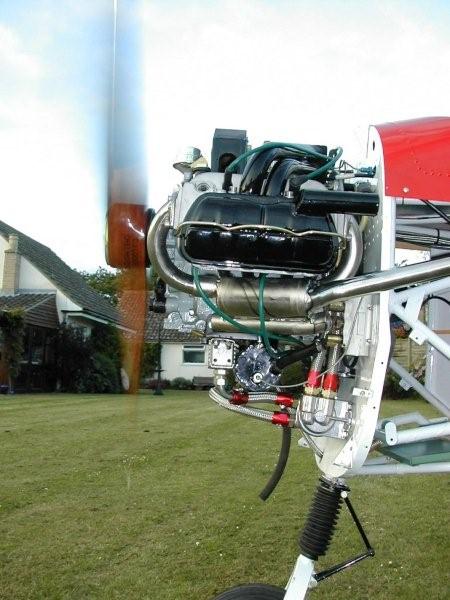

I am based at a noise sensitive site, so had to do something to reduce the exhaust noise. This works very well. It is mild steel which was nickle plated (£100!), so was hopefull that it would last forever, unfortunately the temperatures are such that the plating has failed already on the silencers, so if you find a supplier for the 20swg stainless who can bend to this radius then count me in for a set of bends, and I will get Richard K to weld it up. The system was made from VW "J" tubes that you can by from a VW aftermarket exhaust supplier, they are only about £6 a piece, I used 6 in my system, with a couple waisted due to mistake. My inlet manifold is also made from these J tubes. Pictures here.

The pipe you see welded to the bottom of the silencer has some fins welded to the side of the silencer inside to provide a greater heated surface area. Using both of the heat exchangers I can get the required 30deg temp' rise.

Neil

[Tipsy Flyer]

Hi stuart,
Not sure which model Nipper you have, mine been a Mk1 with the engine hanging out in the breeze
A friend, who is deceased from cancer, gave me same very nice 90 degree,31mm ID, 1mm wall bends. This are used in the dairy, wine, bottled water, food industry.
With a little cutting and welding, one ends up with nice tight bends without excessive exit angles from the flange. Mine is a 4 into 1 which resulted in a smoother and quieter engine.
I used an old engine as a jig and slotted the flanges for easy fitting and removal



[Tipsy Flyer]

If i post more than 2 pic's, the site simple boots me off. One more pic
